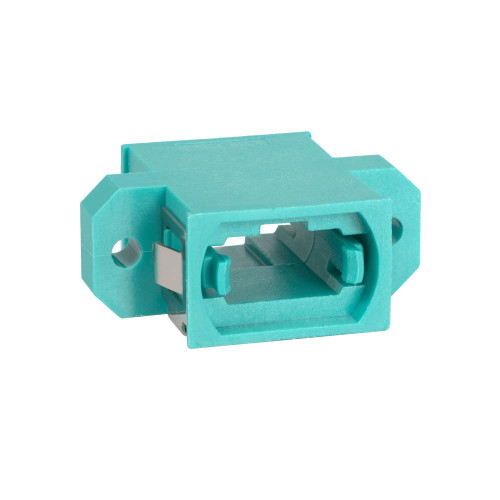

MPO Fiber Optic Adapter Feed-Through with Standard Footprint and Opposite Key, Aqua
- SKU:
- GAFCMP8832
- UPC:
- 677142109023
- Lead Time:
- Ships within 24 hours
- Country of Origin:
- China
Don't see the one you need?Contact us.
Cablesys offers a multifiber push-on MPO to MPO fiber optic adapter. The MPO adapter, also referred as an MPO coupler, is designed with MPO female connections on both ends to connect two MPO patch cords together for up to 12 optical fibers. Cablesys MPO fiber optic coupler has a compact design, accommodating 4, 8, or 12 fiber ribbons. The key is orientated opposite, key-up to key-down, and engineered for precision alignment. They are made with durable UL 94 V-0 and polyethermide material colored aqua. The spring clip is made of stainless steel and designed with a spring loaded sliding mechanism to make sure the adapter is locked into place. A MPO fiber adapter comes with protective caps made of polycarbonate to prevent dust and debris from entering. It is fully compliant with IEC Standard 61754-7 and TIA-604-5 type MPO and recommended for Gigabit Ethernet, telecommunication networks, Local Area Networks (LAN), premise installations, CATV and video, active device and transceiver interface, industrial and military applications.
- Connector:
- MPO
- Packaging:
- Single
- RoHS:
- Compliant
- Country of Origin:
- China
